VAKUUM BOHEMIA is the exclusive representative of Kinney-Tuthill for the Czech Republic and Slovakia.

Piston vacuum pumps are robust, resistant to impurities, and ideal for demanding and dirty applications. Vacuum pumps are cooled by water with the possibility of using a second exchanger. Piston vacuum pumps maintain a high pumping speed even in the case of deep vacuum. Certain piston vacuum pumps have already been in operation for over 70 years. Their primary applications lie in heavy and chemical industries.

To achieve deeper vacuum or increase the pumping speed, front-end auxiliary Roots vacuum pumps are used.

Operating principle of piston vacuum pumps

All types of Kinney piston vacuum pumps use three, parallel connected pistons which are dynamically balanced. These vacuum pumps are reliable and can also be used in contaminated environments. The space between the piston and cylinder is sealed by oil, and the output has an oil mist separator. Vacuum pumps run at low revolutions and so their bearings have a very long service life. The shaft is sealed with a mechanical seal.

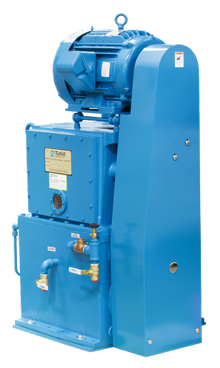

Single-stage piston vacuum pumps
vertical orientation

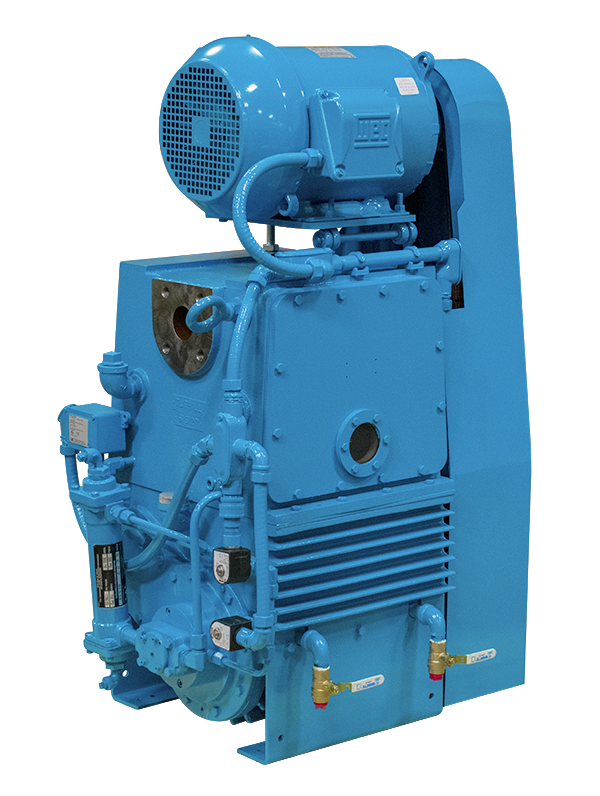

Two-stage piston vacuum pumps
vertical orientation



Single-stage piston vacuum pumps
horizontal orientation





Single-stage piston vacuum pumps are highly robust and capable of dealing with contaminated media.



Double-stage piston vacuum pumps are highly robust vacuum pumps suitable for working in pressures below 0.1 mbar.



Single-stage piston vacuum pumps in horizontal orientation are a compact version of tried and tested single-stage vacuum pumps.

Parameters of piston vacuum pumps:

  • pumping speed: from 36 m3/h up to 1350 m3/h
  • motor power: from 1.1 kW to 30 kW
  • Max. vacuum: 0.00026 mbar or 0.013 mbar(abs)
  • Slow-running vacuum pumps


Advantages of piston vacuum pumps:

  • highly robust
  • resistant to impurities
  • high pumping speed at low pressures
  • long service life

Our services:

  • vacuum systems with piston vacuum pumps
  • sale of piston vacuum pumps
  • sale of spare parts
  • sale of accessories
  • on-site servicing of vacuum pumps
  • repair and overhaul of piston vacuum pumps


Applications:

  • metal coating
  • vacuum packaging
  • vacuum casting
  • chemical industry
  • vacuum welding
  • vacuum furnaces

KT vacuum pumps

KT vacuum pumps are rotary vane oil vacuum pumps with a pumping speed of between 255 and 1322 m3/h that can achieve a vacuum of up to 0.013 mbar. These vacuum pumps have a vertical construction.

ModelPumping speed
[m3/h]
Max. vakuum
[mbar]
Wattage
[kW]
Note
KT-150C2550.0136
KT-300D5100.01311
KT-500D8500.01322
KT-850D13220.01330

KT-LP vacuum pumps

KT-LP vacuum pumps are similar to KT vacuum pumps, however, they have an integrated oil mist separator. These vacuum pumps have a horizontal construction.

ModelPumping speed
[m3/h]
Max. vakuum
[mbar]
Wattage
[kW]
Note
KT-170 LP1600.0133.7
KT-275 LP2750.0137.5
KT-505 LP5050.01311
KT-840 FVP8400.01322
KT-1350 FVP13500.01330

KTC vacuum pumps

KTC vacuum pumps are two-stage rotary vane oil piston vacuum pumps. They are best used in applications where pumping speed is required in a fine vacuum. These vacuum pumps achieve a pressure of up to 0.00026 mbar.

ModelPumping speed
[m3/h]
Max. vakuum
[mbar]
Wattage
[kW]
Note
KTC-21360.000261.1
KTC-601020.000262.2
KTC-1121820.000265.6

KD vacuum pumps

KD and KDH vacuum pumps are single-stage rotary vane oil piston vacuum pumps. These are smaller than the KT vacuum pumps. Pumping speed: from 56 m3/h up to 280 m3/h. The vacuum pump has a duplex piston. KD vacuum pumps achieve a vacuum of up to 0.013 mbar.

ModelPumping speed
[m3/h]
Max. vakuum
[mbar]
Wattage
[kW]
RPMNote
KD-30560.0131.11571
KD-50880.0131.5900
KD-1302270.0133.7546
KD-1502800.0135.6684
